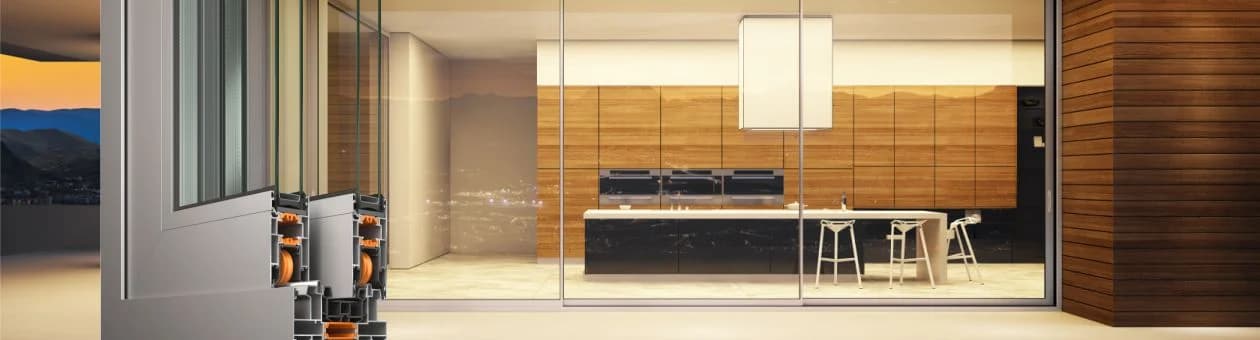

Sliding and lift & slide insulated system SMARTIA M450
SMARTIA M450 represents the next generation of advanced systems for minimal lift & slide and regular sliding doors. It meets the demanding requirements of contemporary residences for high thermal insulation and modern aesthetics.
Advantages
Minimal and innovative design with only 25 mm of visible aluminium face width at the interlocking profile, both for lift & slide and sliding typologies
High energy savings thanks to the exceptional energy efficiency
Great ease of use and high functionality
Easy to clean frame, with invisible water evacuation and less visible depth
Wide variety of typologies
Exceptional quality with certified performance
Technical Characteristics
FRAME DEPTH113 mm
SASH DEPTH45 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT124,5 mm lift & slide, 114 mm sliding
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)25 mm
GLAZING TYPEDouble - Triple
MAXIMUM GLAZING THICKNESS 36 mm
MECHANISM Lift & slide mechanism Sliding mechanism
SEALING METHODPerimetrical with tri-fin brushes and/or EPDM gaskets
MINIMUM THRESHOLD HEIGHT45 mm
All available typologies
Double lifting sliding sash
Double lifting sliding sash with fly-screen
Four lifting sliding sashes meeting stile
Triple lifting sliding sash
Double horizontal sliding sash
Double horizontal sliding sash with flyscreen
Triple horizontal sliding sash

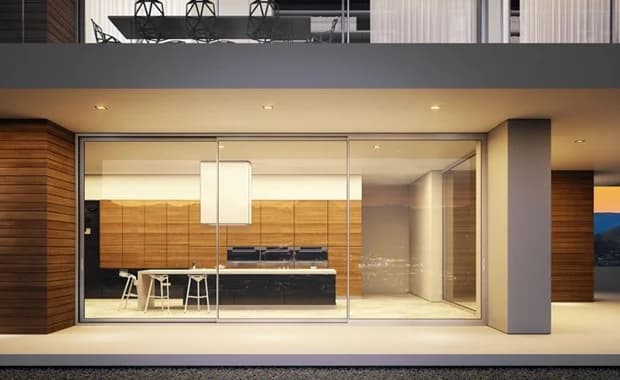

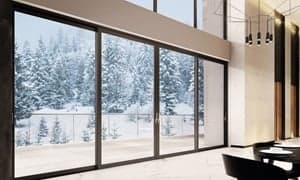

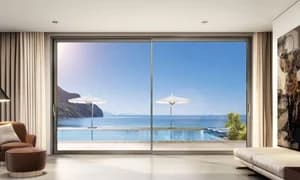

Four horizontal sliding sashes with meeting stileMedia Gallery
