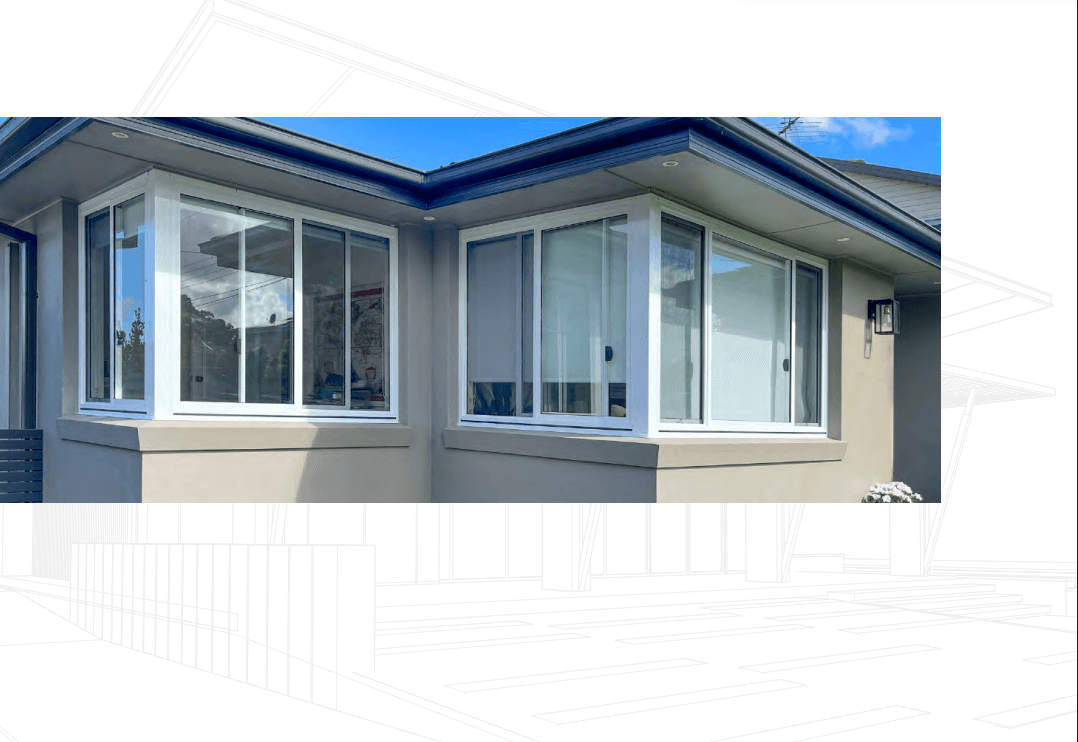

Sliding Window
The KlassicView 76mm Sliding Window is designed to deliver high-performance and strength. Ideal for residential and architectural applications, it accepts a glass thickness of 4mm to 20mm and a sash weight of up to 80kg. A wide variety of interlock options are available for different wind loads, and a drain flap provides protection against weather and air interference. Compatible with other KlassicView systems, it features a continuous jamb for seamless highlights and lowlights. Tested to exceed Australian Standard AS2047 and designed for Australian climatic conditions.
System
76mm KlassicView Broken Aluminium
Key Features
High-performance 76mm aluminium frame — ideal for residential and architectural applications
Accepts glass thickness of 4mm to 20mm and sash weight up to 80kg
Wide variety of interlock options for different wind loads
Drain flap for protection against weather and air interference
Continuous jamb for seamless highlights and lowlights
Tested and exceeds Australian Standard AS2047
Compatible with both single glazing and double glazing
Technical Specifications
Frame System76mm Aluminium
Glazing Thickness4mm to 20mm
Max Sash WeightUp to 80kg
OperationHorizontal Sliding
StandardExceeds AS2047
DesignAustralian Climatic Conditions
Typical Applications
- Residential homes and architectural projects
- High wind load environments
- Highlight and lowlight panel installations
- Combined with other KlassicView systems
