Hinged insulated system SMARTIA S67
SMARTIA S67 is the new complete Tilt & Turn system of ALUMIL, which combines outstanding thermal insulation performances along with high construction flexibility and exceptional design.
Advantages
Very good value for money
High energy savings due to the high energy efficiency of the system
Increased level of security
High level of sound insulation
Ease of use and high functionality
Modern design for windows either with flat or curved line
Ease of access according to specifications for people with special needs and children
High quality with certified performances
Increased static loads and functionality in case of severe weather conditions
Technical Characteristics
FRAME DEPTH67 mm
SASH DEPTH75 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT93 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)67 mm
GLAZING TYPEDouble - Triple
MAXIMUM GLAZING THICKNESS up to 58 mm
MECHANISM Euro-groove, Euro-nut
SEALING METHODPerimetrical at 3 levels with EPDM gaskets
MINIMUM THRESHOLD HEIGHT13 mm
TYPE OF THERMAL INSULATION30mm fiber glass polyamides, PE insulation Foam
All available typologies
Fixed window
Double fixed lights
One sash tilt and turn
Tilt and turn with fix light on top
Tilt and turn with fanlight
Double tilt and turn window
Double tilt and turn window with fixed light
Double tilt and turn with fanlight
Double tilt and turn with fixed lights sideways

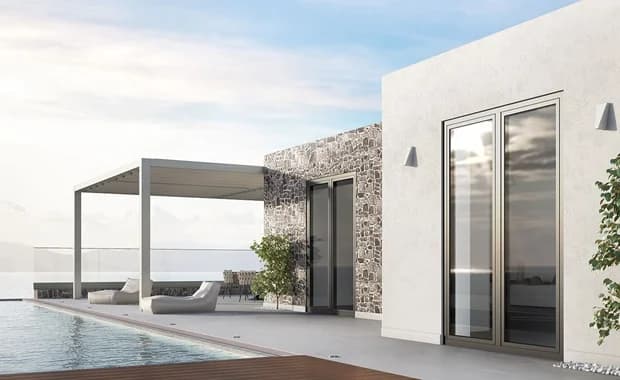

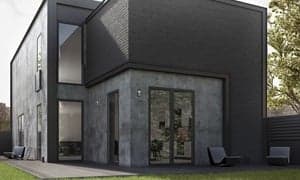

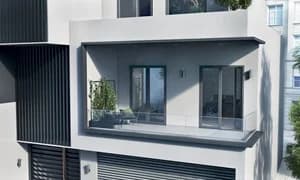

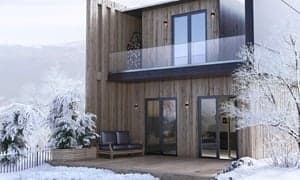

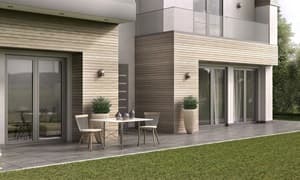

Double tilt and turn window with shutterMedia Gallery

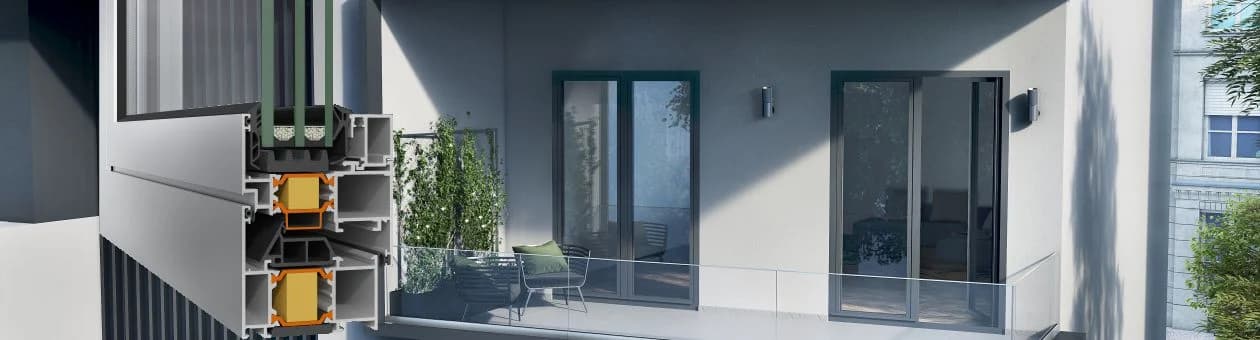

Sections
